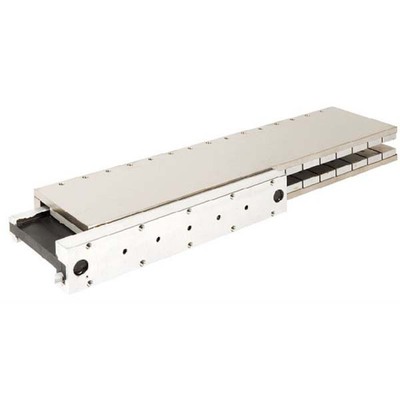

Atuador Linear Mitsubishi Electric MELSERVO J3 LM-U2SB0-420-1SS0 para trilho magnético, curso de 360mm. Consulte especificações técnicas.
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | Electric linear actuator (Magnet track) |
| Product series / family name | MELSERVO J3 series |
| Sub-range name | LM-U2 series |
| Stroke length | 360mm stroke / travel length (S360mm) |
| Functions | Linear actuator / servo motor primary side (magnet track only) |
| Design | coreless type natural cooling |
| Dimensions | H26mm x W82mm x D420mm |
| Net Height (mm) | 26 mm |
| Net Width (mm) | 82 mm |
| Net Depth (mm) | 420 mm |
| Ambient air temperature for operation | 0…+40 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Technical compatibility with | LM-U2P[]-1SS0 coil |
| Order code / Manufacturer SKU | LM-U2SB0-420-1SS0 |
| Manufacturer product status | Commercialized |
| Equivalent to | LMU2SB04201SS0 |
