Entre em contato para mais informações sobre este produto.
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | Electric linear actuator (Magnet track) |
| Product series / family name | MELSERVO J5 series |
| Sub-range name | LM-AJ series |
| Stroke length | 360mm stroke / travel length (S360mm) |
| Functions | Linear actuator / servo motor primary side (magnet track only) |
| Design | core type natural cooling |

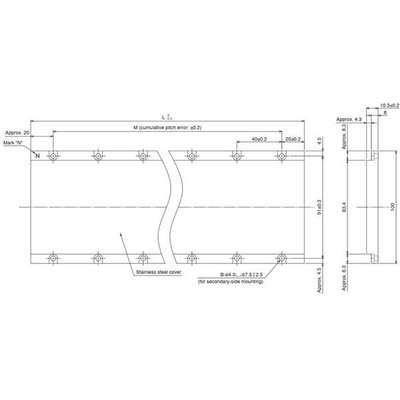

| Dimensions | H10.5mm x W100mm x D400mm |
| Net Height (mm) | 10.5 mm |
| Net Width (mm) | 100 mm |
| Net Depth (mm) | 400 mm |
| Ambient air temperature for operation | 0…+40 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Technical compatibility with | LM-AJP[]-JSS0 coil |
| Order code / Manufacturer SKU | LM-AJS30-400-JSS0 |
| Manufacturer product status | Commercialized |
| Equivalent to | LMAJS30400JSS0 |
