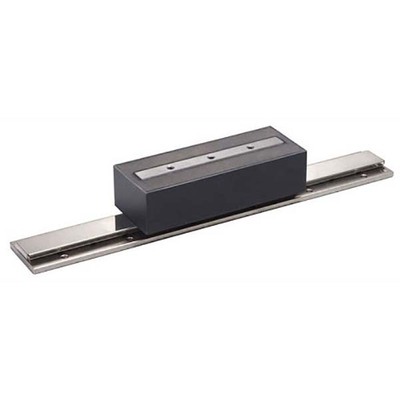

Maximize a precisão dos seus sistemas de automação com o Atuador Linear Magnético MELSERVO J4 Mitsubishi Electric LM-H3S30-384-CSS0. Curso de 336mm, refrigeração natural e compatibilidade com bobina LM-H3P[]-CSS0. SKU: LM-H3S30-384-CSS0.
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | Electric linear actuator (Magnet track) |
| Product series / family name | MELSERVO J4 series |
| Sub-range name | LM-H3 series |
| Stroke length | 336mm stroke / travel length (S336mm) |
| Functions | Linear actuator / servo motor primary side (magnet track only) |
| Design | core type natural cooling |
| Dimensions | H10.5mm x W60.3mm x D384mm |
| Net Height (mm) | 10.5 mm |
| Net Width (mm) | 60.3 mm |
| Net Depth (mm) | 384 mm |
| Ambient air temperature for operation | 0…+40 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Technical compatibility with | LM-H3P[]-CSS0 coil |
| Order code / Manufacturer SKU | LM-H3S30-384-CSS0 |
| Manufacturer product status | Commercialized |
| Equivalent to | LMH3S30384CSS0 |
