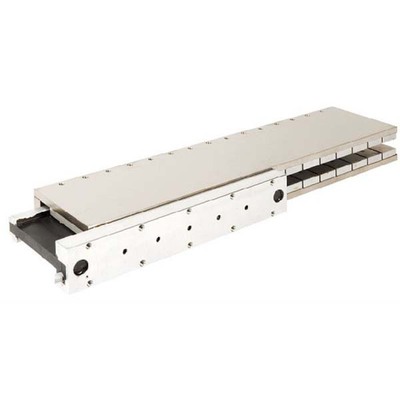

Atuador Linear MELSERVO J4 Mitsubishi Electric LM-U2PBD-15M-1SS0, 3A, 150N/450N, 2m/s, Termistor, Coreless. SKU: LM-U2PBD-15M-1SS0
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | Electric linear actuator (Coil) |
| Product series / family name | MELSERVO J4 series |
| Sub-range name | LM-U2 series |
| Functions | Linear actuator / servo motor primary side (coil only) |
| Design | built-in thermistor coreless type natural cooling |
| Rated current | 3A |
| Speed | 2m/s |
| Dimensions | H24.5mm x W86.5mm x D250mm |
| Net Height (mm) | 24.5 mm |
| Net Width (mm) | 86.5 mm |
| Net Depth (mm) | 250 mm |
| Ambient air temperature for operation | 0…+40 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Force | continuous thrust 150N max. thrust 450N |
| Technical compatibility with | LM-U2S[]-1SS0 magnet |
| Maximum current | 8.9 A |
| Rated power | 1000 VA |
| Order code / Manufacturer SKU | LM-U2PBD-15M-1SS0 |
| Manufacturer product status | Commercialized |
| Equivalent to | LMU2PBD15M1SS0 |
| Compliant with standard(s) | CE marking TUV Rheinland cULus UL KC DIN VDE0580 EN50581 UL1004-6 CSA EAC |
| Mechanical withstand | 450 N |
| Recommended accessories | for standard 1-axis use amplifiers – MR-J4-60GF – MR-J4-60GF-RJ – MR-J4-60B – MR-J4-60B-RJ – MR-J4-60A – MR-J4-60A-RJ Use amplifier motor cables as follows compatible with Secondary side magnet ( ) ( LM-U2SB0-300-1SS1 ) ( LM-U2SB0-420-1SS1 ) |
