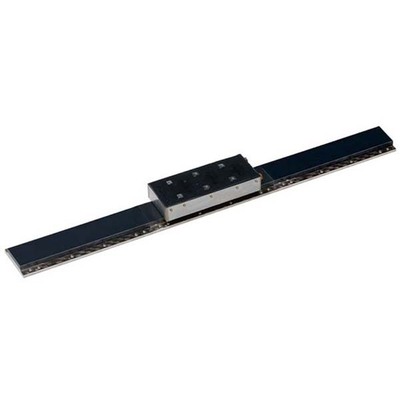

Atuador linear (bobina) Mitsubishi Electric LM-FP4D-24M-1SS0 MELSERVO J4, com 15A de corrente nominal, força contínua de 1200N, velocidade de 2m/s e faixa de temperatura de 0…+40°C. SKU: LM-FP4D-24M-1SS0.
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | Electric linear actuator (Coil) |
| Product series / family name | MELSERVO J4 series |
| Sub-range name | LM-FP series |
| Functions | Linear actuator / servo motor primary side (coil only) |
| Design | built-in thermistor core type natural cooling or liquid cooling |
| Rated current | 15A (natural cooling) 31A (liquid-cooling) |
| Speed | 2m/s |
| Dimensions | H70.1mm x W208mm x D530mm |
| Net Height (mm) | 70.1 mm |
| Net Width (mm) | 208 mm |
| Net Depth (mm) | 530 mm |
| Ambient air temperature for operation | 0…+40 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Force | continuous thrust (natural cooling) 1200N / (liquid cooling) 2400N max. thrust 7200N |
| Technical compatibility with | LM-FS[]-1SS0 magnet |
| Maximum current | 109 A |
| Rated power | 10000 VA |
| Order code / Manufacturer SKU | LM-FP4D-24M-1SS0 |
| Manufacturer product status | Commercialized |
| Equivalent to | LMFP4D24M1SS0 |
| Compliant with standard(s) | CE marking TUV Rheinland cULus UL KC DIN VDE0580 EN50581 UL1004-6 CSA EAC |
| Mechanical withstand | 7200 N |
| Recommended accessories | for standard 1-axis use amplifiers – MR-J4-700GF – MR-J4-700GF-RJ – MR-J4-700B – MR-J4-700B-RJ – MR-J4-DU900B – MR-J4-DU900B-RJ – MR-J4-700A – MR-J4-700A-RJ Use amplifier motor cables as follows compatible with Secondary side magnet ( MR-J4-700A-RJ ) ( LM-FS40-576-1SS0 ) |
