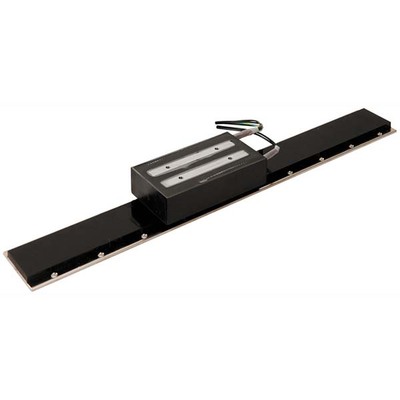

Atuador linear Mitsubishi Electric MELSERVO J3 LM-H2P3C-72M-1SS0, com 720N de força contínua, velocidade de 2m/s e corrente nominal de 14A.
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | Electric linear actuator (Coil) |
| Product series / family name | MELSERVO J3 series |
| Sub-range name | LM-H2 series |
| Functions | Linear actuator / servo motor primary side (coil only) |
| Design | natural cooling |
| Rated current | 14A |
| Speed | 2m/s |
| Dimensions | H48mm x W114mm x D360mm |
| Net Height (mm) | 48 mm |
| Net Width (mm) | 114 mm |
| Net Depth (mm) | 360 mm |
| Ambient air temperature for operation | 0…+40 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Force | continuous thrust 720N |
| Maximum current | 38 A |
| Order code / Manufacturer SKU | LM-H2P3C-72M-1SS0 |
| Manufacturer product status | Discontinued |
| Mechanical withstand | 1800 N |
